Tuesday, 1 September 2009

Unfinished Business

One of the main reasons for carrying out a Formal Investigation into a shipping disaster is to determine its causes so that safety lessons can be learned and action taken to prevent similar tragedies re-occurring. Following the Gaul and Derbyshire inquiries we have found out, however, that this is not really the case: the protection of the financial interests of a few political and corporate operators have primacy over all other considerations, including safety.
In the run up to the 2004 Gaul and 2000 Derbyshire formal investigations, and subsequently, a lot of public money was spent and a lot of work was carried out in order to determine the causes of these two maritime disasters and to propose new measures that would improve safety. The causes for the tragedies were well obscured and, as for the safety measures recommended during those two inquiries, when it came to the final stage - the implementation or concrete action stage – matters, somehow, fizzled out.
Trawler Gaul lost in 1974 with all 36 crew
It is doubtful whether the four safety recommendations that came out of the Gaul 2004 Re-opened Formal Investigation (RFI) will ever come into effect. They had not been implemented in January 2007 when we first raised this matter [link] and they have not been implemented since.
The fact that the four safety recommendations, put forward by Justice Steel (the Wreck Commissioner in the Gaul RFI), are based upon false premises, are inappropriate and will therefore not be effective in preventing future loss of life, may be one of the reasons why the Government prefers them to be shelved and quietly forgotten.
OBO MV Derbyshire lost in 1980 with all 44 persons onboard
The Formal Investigation into the loss of the MV Derbyshire concluded in 2000 and its final report was published on 8 November of that year. The principal finding and recommendation to come out from the Derbyshire RFI was that the regulations for hatch cover strength were seriously deficient and that the International Convention on Load Lines (1966) needed to be amended urgently to rectify this shortfall.
The regulations of the Load Line Convention were thus redrafted at IMO to include requirements for specially strengthened hatch covers to be fitted to the forward cargo holds of all new cargo ships (not only bulk carriers). The new amendments were finalised at IMO [*] in 2002 and came into force Internationally in 2005.
However, they did not legally come into force for UK flagged vessels at the same time because the UK’s own Merchant Shipping legislation had not been amended to give legal force to the new Load Line Convention requirements for hatch covers. Today, the legislation still has not been revised.
The relevant UK rules are contained in Statutory Instrument (SI) 1998 No. 2241: The Merchant Shipping (Load Line) Regulations 1998.
There is no reason why these rules could not have been amended in a timely manner; in fact, the UK Load Line regulations were recently modified by Statutory Instrument (SI) 2005 No. 2114, so as to implement the following changes:
“……… in the definition of "pleasure vessel" or "pleasure craft", as the case may be, for each reference to "husband or wife" substitute "spouse or civil partner".
Now, that was extremely important - and also revealing of our government’s legislative priorities as regards Maritime safety.
[*] International Maritime Organisation

Sunday, 4 January 2009

Non-compliance with the Standards

A critical look at the design of the Derbyshire’s hatch covers and at the Court’s view that the hatch covers complied with the ‘standards applicable at the time she was built


In 2000, the Re-opened Formal Investigation (RFI) into the loss of the Derbyshire concluded that that the Tees built bulk carrier had been lost, during typhoon Orchid, as a result of significant hold flooding following the structural failure of the vessel’s main cargo hold hatch covers due to heavy seas.
The Court also concluded that although the vessel’s main cargo-hold hatch covers had been designed to meet the international strength standards applicable at the time she was built, those strength standards were severely deficient, and it was this regulatory deficiency that was crucial to the vessel’s loss.

Extracts from sections 7 and 16 in the final report of the RFI:

"7.16 At the time of the DERBYSHIRE’s last voyage her
hatch covers complied with the minimum strength requirements of ILLC 66 and of the Lloyd’s Register of Shipping Rules.


16.7 In so far as material to the loss of the “DERBYSHIRE” was the design of the hatch covers of the “DERBYSHIRE” in accordance with the standards applicable at the time she was built?

- Yes.

16.8 Is that design satisfactory in the light of what is now known?

- No: seriously deficient. The design strength was inadequate to withstand the green water loads likely to be sustained during extreme sea conditions, which a vessel might encounter during her service life."

The outcome of the RFI was, thus, able to deflect any suspicion of blame away from the vessel’s builders and the Classification Society, both of whom could have been subjected to hostile litigation, had the design or construction of the hatch covers been found to fall short of the required norms.
However, independent calculations show that the court’s conclusion, that the Derbyshire complied with the standards applicable at the time she was built, is not wholly correct. The results of these calculations are summarised in the pages that follow below.

Hatch Covers - applicable standards

The minimum strength standard [1] that the Derbyshire’s hatch covers was required to meet was laid down within the 1966 International Load Line Convention, additionally this minimum strength standard was incorporated within the construction rules and regulations of the organisation (Lloyd’s Register) that assigned the Derbyshire with its +100 A1 Classification and its International Load Line certificate.

Strength Calculations

It is unfortunate that the Derbyshire was not constructed to meet the version of Lloyd’s Rules that was in force prior to the introduction of their 1968 Rule amendments, as that earlier version (first introduced in 1963 and valid until 1967) contained more stringent requirements for ore carrying deep draught vessels such as the Derbyshire.

What is more unfortunate, however, is that, as our calculations show, she didn’t comply with the standards that were introduced later (i.e. at the time of her build). This latter non-compliance was not acknowledged during the course of the 2000 RFI, and whether or not the Derbyshire would have survived, had her hatch covers met the relevant standards, remains, therefore, debatable.

Extracts from Lloyd’s Rules 1967
Ships specially
designed for carrying ore
Para 6020 (page 254)

“Hatch Covers

Steel hatch covers are to be in accordance with D 2326 and the
scantlings determined from the formulae given in table 43 note 6. When a draught in excess of the cargo ship draught is desired, the section modulus and moment of inertia of the stiffeners and thickness of the plating are to be increased by 15 per cent.”

In 1968, Lloyd’s rule requirements for hatch cover strength were reduced by 15% to bring them into line with the requirements of the 1966 Load Line Convention.

In the following pages the strength of the Derbyshire’s number one cargo-hold hatch covers has been evaluated and compared to the minimum strength required by both the Load Line convention and Lloyds Rules. The minimum strength requirements that were given within the Load Line Convention and Lloyd’s Rules were the ‘standards applicable at the time she was built’. No other standard is relevant.

The summarised results from the strength calculations that are given below include values obtained from classical manual calculation methods (simple beam theory), empirical methods (to give section modulus required by Lloyd’s rules) as well as finite element modelling and analysis.

The results from each of the above methods show that the Derbyshire’s No. 1 hatch covers did not meet the minimum strength ‘standards applicable at the time she was built’.

Derbyshire no.1 hatch cover construction (mild steel)

The Derbyshire’s number 1 cargo hold hatch opening was protected by two hatch covers arranged Port and Starboard of the vessel’s centreline which slid outboard to open and inboard to close. When closed, each hatch cover was supported on three of its sides by the upper deck hatch coaming structure. The fourth side of the port hatch cover mated with the fourth side of starboard hatch cover at the vessel’s centerline. There was no structural support for the fourth side of the hatch covers at the vessel’s centreline other than at their fore and aft ends where they sat upon the hatch coamings.

Each hatch cover panel was arranged with steel top plating and four side plates around its perimeter. Longitudinal and transverse stiffening members were provided on the underside, i.e. ten main, fore and aft longitudinal stiffeners and three main transversal girders (side, centre, side); these stiffening members were ‘simply supported’ at their ends by the four hatch cover side plates.

Main fore and aft hatch cover stiffeners – strength and stress calculation


1. Stress calculation using simple beam theory:

The stresses within the hatch stiffener can be calculated from the section properties that are detailed above in conjunction with the loading that is given within the Load Line Convention:
The fore and aft stiffeners are simply supported at their ends by the hatch coamings:

(1) For mild steel, maximum allowable stress = 4100/4.25 = 965 kg/cm2
Hatch cover fore and aft stiffener spacing = 0.994 m
Total pressure load on one stiffener = W = 14.72 x 0.994 x 1.75 = 25.605 tonnes
Approximate self weight of one stiffener = Section Area of 1 stiffener x L x density:
Self weight of stiffener = (0.994 x 0.011 + (0.61 + 0.46)/2) x 0.0105 + 0.28 x 0.025) x 14.72 x 7.8 = 0.351 x 7.86 = 2.725 tonnes

From simple bending theory: the maximum bending moment in the stiffener is at its mid point = WL/8
M = (25.605 + 2.725) x 14.72/8 = 52.1272 tonne metres

Simple bending theory:
M/I = σ/Y = E/R => stress = σ = bending moment/section modulus

Maximum bending stress = 52.1272 x 105/4799.43 = 1086.11 kg/cm2 (this exceeds the maximum allowable stress in (1) above)

Load Line Convention requirements:

The minimum required Section Modulus (I/Y) to give stresses below 965 kg/cm2 can be easily determined:

From simple bending theory (M/I = σ/Y) => M/σ = I/Y = 5212720/965 = 5402 cm3

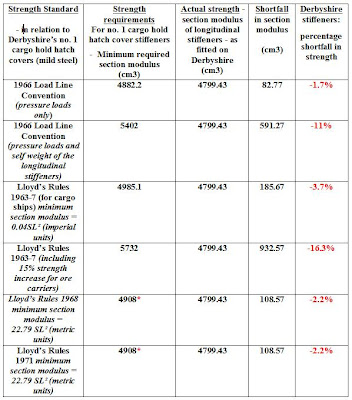

Summary of strength standards:

The table below provides a summary of the strength standards that were current during the period in which the Derbyshire was designed and built. The shortfall in the required strength of the hatch cover stiffeners is also indicated.

* It would appear that the Lloyd’s Register formulation for minimum section modulus does not include an element for the stiffener’s self-weight. This implies that their rules at that time would consistently give strength requirements that would fall below that set to meet the stress criteria of the 1966 Load Line Convention. The strength required to support the stiffener’s own self weight is significant (on the Derbyshire each stiffener weighed approximately 2.5 tonnes and was 14.7m long); neglecting this factor would mean an approximate 10% shortfall in required strength when the Lloyds formulation was used.

Although the percentages shown in the above table do not appear to be dramatic, it should be noted that these are shortfalls on a strength standard that is meant to provide a statutory minimum. There is no reason, other than cost savings, why designers should not exceed this statutory minimum by a comfortable margin.
The above concludes the summary of the traditional ‘rule - based’ approach to determining hatch cover strength requirements.

2. Strength and stress analysis of the Derbyshire’s hatch covers using the finite element method

It should be noted that the hatch covers on the Derbyshire were not solely provided with fore and aft ‘I’ section stiffening members (as discussed and examined previously) in addition three deep transverse girders were provided, arranged as indicated in the sketch on page 3. Effectively, this arrangement of longitudinal stiffeners and transverse girders formed what is known as a ‘grillage’ in structural analysis terminology.

The effect that these three additional girders would have on the actual strength of the hatch covers is debatable. There are two main possibilities: the girders would either increase the strength of the covers, if arranged effectively, or diminish the strength of the hatch covers, if not arranged effectively.
The Class Society’s rules in the 60’s and early 70’s did not specifically provide for grillage type hatch cover arrangements, and did not give detailed strength requirements for hatch covers that were arranged in this way. Manual calculations to determine realistic strength and stress levels in a grillage are quite complex.

The contemporary method for performing strength and stress analysis on two and three-dimensional structures is by means of finite element modelling.The Load Line Convention’s parameters are quite useful in this respect, as they lay down the loads that have to be applied together with the maximum allowable stress levels,. They neither specify how the hatch covers should be arranged nor give strength values for the hatch cover’s structural elements.
We have constructed two finite element models of the Derbyshire’s hatch cover structure:

i) Three stiffener model
This first model was used to determine the stress levels in a single longitudinal stiffener (for comparison with the results previously obtained from the traditional approach). Note that three stiffeners were included in the model to eliminate boundary effects. The transverse girders, although included, were not effective in this model

ii) The port side hatch cover model
One whole hatch cover was modelled to determine the stress levels in the stiffeners, girders, side and top plating. The stiffeners, girders, side plates and cover top plating were effective in this model.

The results from the finite element analysis are best appreciated visually, the following comments are a brief summary of what the two analyses revealed:

Three-stiffener model: this model, which was typical for the 10 fore and aft main stiffening members of the Derbyshire’s hatch covers, revealed maximum stress levels of about 1000 kg/cm2 in the main longitudinal stiffener flange. These stresses correspond with those obtained from traditional beam and bending theory, and, again, they exceed (by about 5%) the allowable stress parameters that are laid down within the Load Line Convention. ">

Undeformed stiffener model viewed from underside

Undeformed stiffener model viewed from above

Deformed model with seawater loading at 1.75 Tonnes/m2 (plus self weight) - Viewed from above

Deformed model with seawater loading at 1.75 Tonnes/m2 (plus self weight) - Viewed from the underside

Port side hatch cover model:
this model revealed that the three main transverse girders were effective in reducing stresses in the longitudinal stiffeners to satisfactory levels. However, the girders themselves, together with the inboard hatch cover side plate to which they were attached, were not strong enough to take the additional loads that had been shed from the 10 longitudinal stiffeners. Stress maxima in the region of 1300 kg/cm2 were developed in the two transverse side girders, stress maxima in the region of 1400 kg/cm2 were developed in the single transverse girder, and stress maxima in the region of 1350 kg/cm2 were developed in the main inboard hatch cover side plate.

Undeformed hatch cover model viewed from above

Undeformed hatch cover model viewed from underside

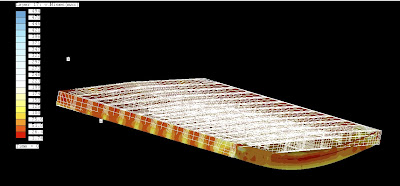

Hatch cover - original and deformed structure

Hatch cover - original and deformed structure

Hatch cover - deformed structure - views

Hatch cover - deformed structure - view from above

Hatch cover - deformed structure - view of the underside


The stress levels in the transverse girders and longitudinal inboard side plate, as revealed by the FE analysis, significantly exceed the allowable stress levels that are given within the 1966 Load Line Convention. It is notable, that the stress levels in some areas are more than 40% above the statutory maxima. Elevated stress levels indicate that the hatch cover’s factor of safety against catastrophic collapse may have been significantly reduced. And a failure in the longitudinal inboard side plate could lead to a domino-like collapse of the remaining hatch structure.

On the basis of the calculations summarised above, it is clear that the strength of the Derbyshire’s hatch covers did not comply with the standards that were applicable at the time she was constructed, and that, therefore, the RFI statement to the contrary was incorrect.


[1] Re: Strength

i) The required ‘strength’ standard within the 1966 Load Line Convention was the minimum strength that, when the hatch covers were loaded at a rate of 1.75 tonnes/m2, would produce stresses below the ultimate breaking strength of mild steel divided by 4.25 (a notional factor of safety of 4.25).

ii) The required strength standard that was contained within Lloyd’s Register’s construction rules was expressed as ‘minimum required section modulus’ - the rule requirements allowed the maximum stress values, that were permitted by the Load Line Convention, to be governed by a single parameter which could be calculated for each girder in each hatch cover ie if the main hatch girders had a section modulus that exceeded xxxx cm3 then the maximum stress levels within that girder would not exceed the values permitted by the load Line Convention when the cover was loaded at 1.75 tonnes/m2.
